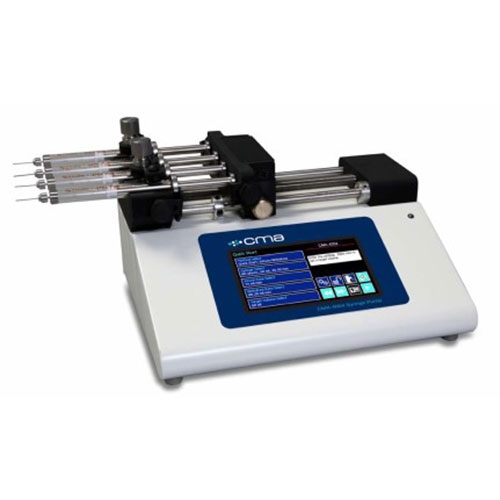

CMA 4004 Microdialysis injection pump
Description:
- Uses up to 4-channel syringes, suitable for 0.5µL–10mL syringes.
- Wideer flow rate range: 0.54 pl/min–11.70 ml/min.
- Equipped with a high-resolution color touchscreen for extremely simple operation.
- Experimental operation includes perfusion/absorption and is programmable.
- With the CMA 470 multichannel cooled microcollector, simultaneous four-channel microdialysis sampling experiments can be performed.
- Suitable for microdialysis experiments; software included.
-
The CMA 4004 microdialysis syringe pump is a newly designed, easy-to-use, four-channel syringe that provides a stable and very wide flow rate range suitable for microdialysis experiments. This microdialysis pump also offers excellent repeatability, enabling highly precise micro-injections within time intervals. The high-resolution color touchscreen facilitates easy programming and calling of methods. If needed, the flow rate can be set to reverse direction, allowing liquid to be drawn back.
The CMA 4004 microdialysis syringe pump can operate horizontally or vertically, allowing selection of suitable experimental methods.
The CMA 4004 microdialysis syringe pump is equipped with an RS-485 manifold and a digital remote control, which can be controlled via a computer through a USB interface. -
Accuracy: ±0.35%
Repeatability: ±0.05%
Syringe (Minimum/Maximum): 0.5 μl / 10 ml
Flow Rate: Minimum (0.5 μl needle) 0.54 pl/min Maximum (10 ml needle) 11.70 ml/min
Display: 4.3” WQVGA TFT Color Touchscreen
Non-Volatile Memory: Stores all settings
Connectivity: RS-485 IEEE-1394, 6-position USB Type B I/O & TTL 15-pin D-Sub Connector
Foot Switch: Mini Headphone Jack
Linear Force (Maximum): 16 kg (35 lbs) @ 100% Force Selection
Drive Motor: 0.9° Stepper Motor
Motor Drive Control: Microprocessor with 1/16 microstepping
Microsteps per Revolution: 20,480
Walking Resolution: 0.031 μm/μstep
Walking speed: Minimum 27.5 sec/μstep, Maximum 26 μsec/μstep
Propulsion speed: Minimum 0.068 μm/min, Maximum 71.55 mm/min
Input voltage: 12-30 VDC (24 V recommended)
Power connector: 2.5 mm ID x 5.5 mm OD male plug
Power supply: 100-240 VAC, 50-60 Hz, 8 Watts Universal Power Supply, Use Only a Harvard Apparatus Approved Power Supply and Line Cord
Dimensions: H x W x D 22.6 x 17.78 x 15 cm (9 x 7 x 6 in)
Weight: 2.1 kg (4.6 lbs)
-
產品介紹The CMA 4004 microdialysis syringe pump is a newly designed, easy-to-use, four-channel syringe that provides a stable and very wide flow rate range suitable for microdialysis experiments. This microdialysis pump also offers excellent repeatability, enabling highly precise micro-injections within time intervals. The high-resolution color touchscreen facilitates easy programming and calling of methods. If needed, the flow rate can be set to reverse direction, allowing liquid to be drawn back.
The CMA 4004 microdialysis syringe pump can operate horizontally or vertically, allowing selection of suitable experimental methods.
The CMA 4004 microdialysis syringe pump is equipped with an RS-485 manifold and a digital remote control, which can be controlled via a computer through a USB interface. -
規格Accuracy: ±0.35%
Repeatability: ±0.05%
Syringe (Minimum/Maximum): 0.5 μl / 10 ml
Flow Rate: Minimum (0.5 μl needle) 0.54 pl/min Maximum (10 ml needle) 11.70 ml/min
Display: 4.3” WQVGA TFT Color Touchscreen
Non-Volatile Memory: Stores all settings
Connectivity: RS-485 IEEE-1394, 6-position USB Type B I/O & TTL 15-pin D-Sub Connector
Foot Switch: Mini Headphone Jack
Linear Force (Maximum): 16 kg (35 lbs) @ 100% Force Selection
Drive Motor: 0.9° Stepper Motor
Motor Drive Control: Microprocessor with 1/16 microstepping
Microsteps per Revolution: 20,480
Walking Resolution: 0.031 μm/μstep
Walking speed: Minimum 27.5 sec/μstep, Maximum 26 μsec/μstep
Propulsion speed: Minimum 0.068 μm/min, Maximum 71.55 mm/min
Input voltage: 12-30 VDC (24 V recommended)
Power connector: 2.5 mm ID x 5.5 mm OD male plug
Power supply: 100-240 VAC, 50-60 Hz, 8 Watts Universal Power Supply, Use Only a Harvard Apparatus Approved Power Supply and Line Cord
Dimensions: H x W x D 22.6 x 17.78 x 15 cm (9 x 7 x 6 in)
Weight: 2.1 kg (4.6 lbs)
