The analyzer is easy to operate by medical professionals as well as researchers with a new and improved graphical user interface. Up to six different reagents provide unique opportunities for early detection of metabolic crisis and ischemia and to guide therapeutic interventions. The analysis results are displayed as trend curves for easy and fast interpretation. For comparison of other intensive care data the unique ICUpilot software is included.
-
Third generation Microdialysis Analyzer for point-of-care and advanced research

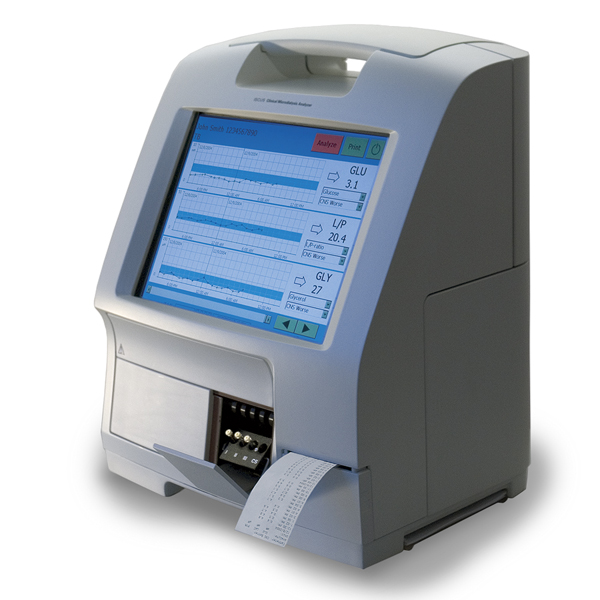

ISCUSflex is the third generation Microdialysis Analyzer for point-of-care and advanced research. This analyzer uses enzymatic reagents and colorimetric measurements to monitor tissue chemistry from virtually any tissue or organ in the body.
The analyzer is easy to operate by medical professionals as well as researchers with a new and improved graphical user interface. Up to six different reagents provide unique opportunities for early detection of metabolic crisis and ischemia and to guide therapeutic interventions. The analysis results are displayed as trend curves for easy and fast interpretation. For comparison of other intensive care data the unique ICUpilot software is included.
ISCUSflex combines reliability and flexibility. It offers the opportunity to monitor up to eight patients at a time and is ideal for use in a clinical setting. With a capacity of 16 vials, the ISCUSflex offers batch analysis for advanced clinical and preclinical research. The throughput of the analyzer is approximately 30 measurements per hour.
Available for sale in Europe (CE-approval), US (FDA 510(k) clearance) and pending for launch in the rest of the world. For more info, please contact M Dialysis or your local distributor.
-
Weight: 29 lbs/13 kgVoltage: 100-240 V~, 50/60 HzPower consumption 100 VADimensions 430 (H) x 350 (W) x 270 (D) mmType of protection: Class 1, Type BMeasurement principle Kinetic enzymatic analyzerVials: Microvials, Chromacol (CMA glass) and ETH (CMA plastic) vialsSamples: MicrodialysatesSample volume used: 0.4 – 2 µL/analysis (depending on analyte)Min. sample volume: Sum of sample volumes per analyte + 2 µLReagent consumption: <15 µL/analysis (depending on analyte)Pipetting imprecision: < 2 % (0.5 µL) rel. standard deviationCalibration Automatic (every 6 hrs)Warm-up time 10 minutesMeasuring time: 30 secondsThroughput time/test: 90 secondsDetector type Single beam filter photometerLight source Class 1 LEDWavelengths: 375 and 530 nmDetector cell temperature: 99 ºF/37 ºCDetector cell: Capillary flow cell 10 mm, 2 µLAssay imprecision: <4 % rel. standard deviation for Control Sample NormalAssay inaccuracy: <10 % for Control Sample Normal
-
Product Introduction
Third generation Microdialysis Analyzer for point-of-care and advanced research
ISCUSflex is the third generation Microdialysis Analyzer for point-of-care and advanced research. This analyzer uses enzymatic reagents and colorimetric measurements to monitor tissue chemistry from virtually any tissue or organ in the body.
The analyzer is easy to operate by medical professionals as well as researchers with a new and improved graphical user interface. Up to six different reagents provide unique opportunities for early detection of metabolic crisis and ischemia and to guide therapeutic interventions. The analysis results are displayed as trend curves for easy and fast interpretation. For comparison of other intensive care data the unique ICUpilot software is included.
ISCUSflex combines reliability and flexibility. It offers the opportunity to monitor up to eight patients at a time and is ideal for use in a clinical setting. With a capacity of 16 vials, the ISCUSflex offers batch analysis for advanced clinical and preclinical research. The throughput of the analyzer is approximately 30 measurements per hour.
Available for sale in Europe (CE-approval), US (FDA 510(k) clearance) and pending for launch in the rest of the world. For more info, please contact M Dialysis or your local distributor.
-
SpecificationWeight: 29 lbs/13 kgVoltage: 100-240 V~, 50/60 HzPower consumption 100 VADimensions 430 (H) x 350 (W) x 270 (D) mmType of protection: Class 1, Type BMeasurement principle Kinetic enzymatic analyzerVials: Microvials, Chromacol (CMA glass) and ETH (CMA plastic) vialsSamples: MicrodialysatesSample volume used: 0.4 – 2 µL/analysis (depending on analyte)Min. sample volume: Sum of sample volumes per analyte + 2 µLReagent consumption: <15 µL/analysis (depending on analyte)Pipetting imprecision: < 2 % (0.5 µL) rel. standard deviationCalibration Automatic (every 6 hrs)Warm-up time 10 minutesMeasuring time: 30 secondsThroughput time/test: 90 secondsDetector type Single beam filter photometerLight source Class 1 LEDWavelengths: 375 and 530 nmDetector cell temperature: 99 ºF/37 ºCDetector cell: Capillary flow cell 10 mm, 2 µLAssay imprecision: <4 % rel. standard deviation for Control Sample NormalAssay inaccuracy: <10 % for Control Sample Normal
